Cleanroom & Sterile RoomAcoustic Sandwich Panel
Overview

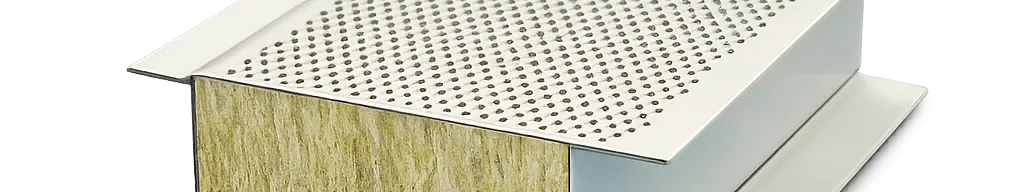

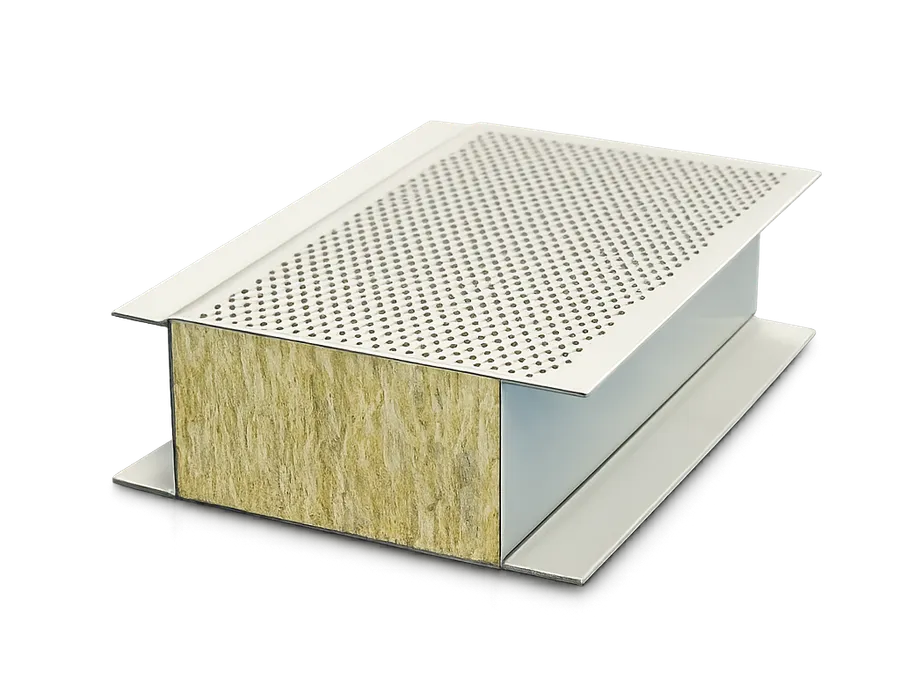

Perforated Acoustic Sandwich Panel
Acoustic sandwich panel with high-density rockwool core for controlling sound reflection and transmission in industrial, commercial, and technical facilities.
Better Noise Control
Perforated facing and rockwool core work together to improve sound absorption in enclosed spaces.
Suitable for Technical Facilities
Suitable for areas that require both acoustic stability and fire performance in one panel system.
Modular Installation
A prefabricated panel approach helps accelerate interior work compared with conventional acoustic systems that require more layers on site.
Main Specifications
Panel Thickness
50 - 200 mm
50 - 200 mm
Core Density
60 - 150 kg/m3
60 - 150 kg/m3

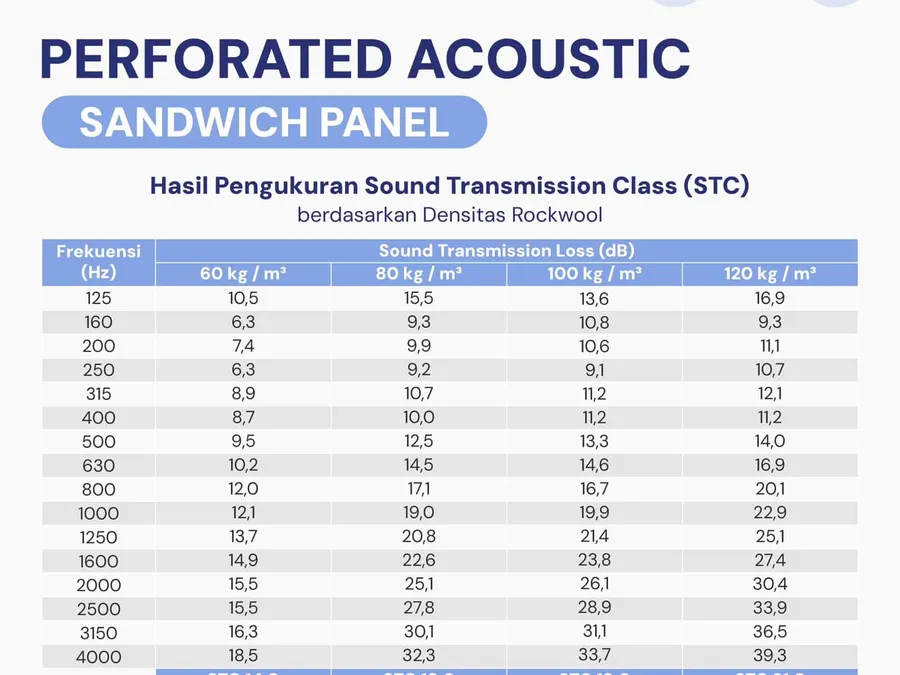

Acoustic Performance
NRC 0.8 - 1.0, STC up to 21
NRC 0.8 - 1.0, STC up to 21
Surface Finish
Perforated galvanized steel / coated aluminium
Perforated galvanized steel / coated aluminium
Thickness
50mm75mm100mm125mm150mm200mm
